Iconik Share

Comprises:

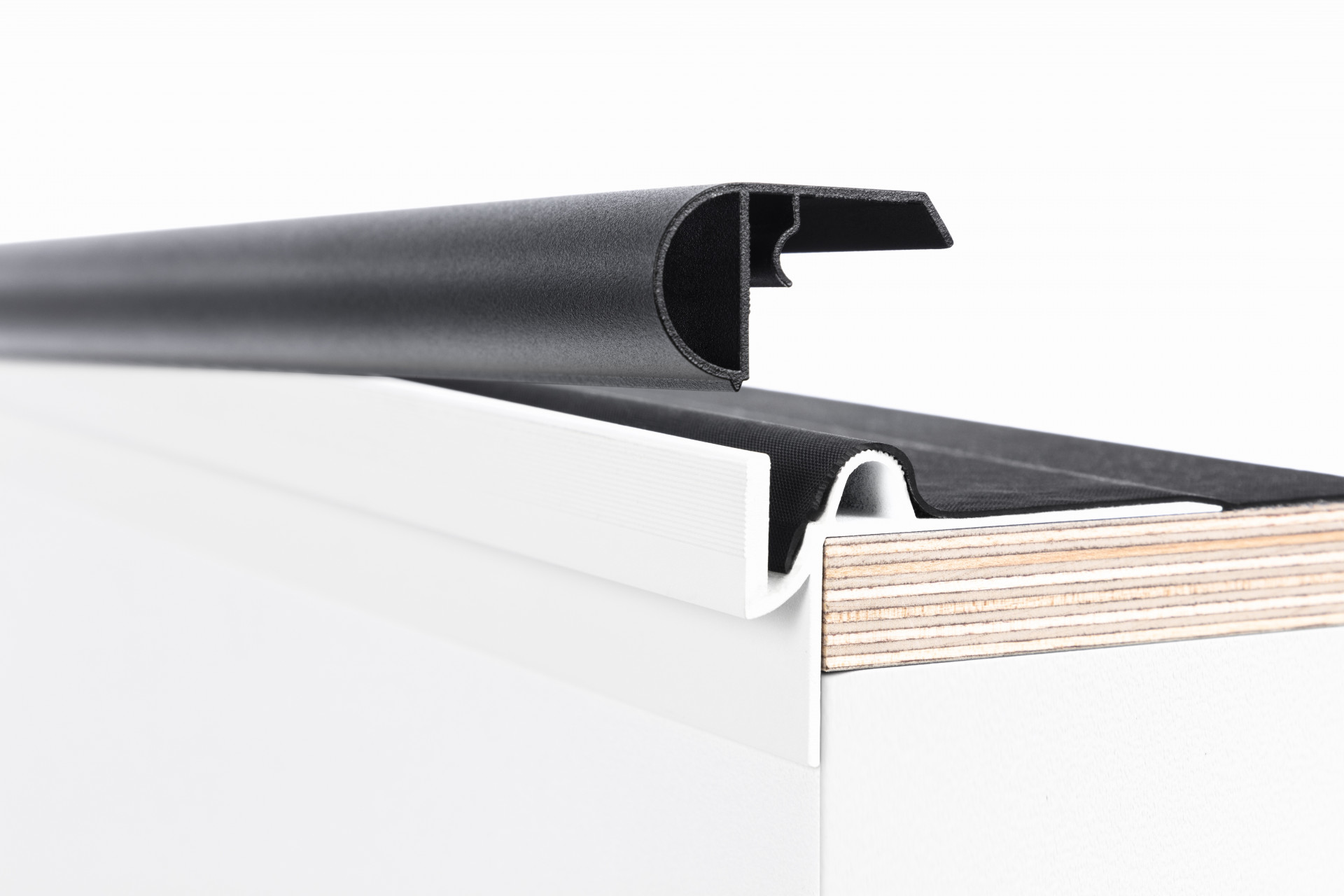

• Base profile with  a 30 mm upright side facing downwards to cover the timber boarding. Version in stove enamelled aluminium with a 60 mm effective supporting surface with 6x16mm pre punched oval holes. The base profile comes with a standard 3000 mm lenght in all cases.
• Semi-circular decorative plate (3000 mm long) in stove-enamelled aluminium, 25 mm high, with a 1.2 mm wall thickness, fitted with tensioning ribs to ensure optimum clamping of the roof covering.

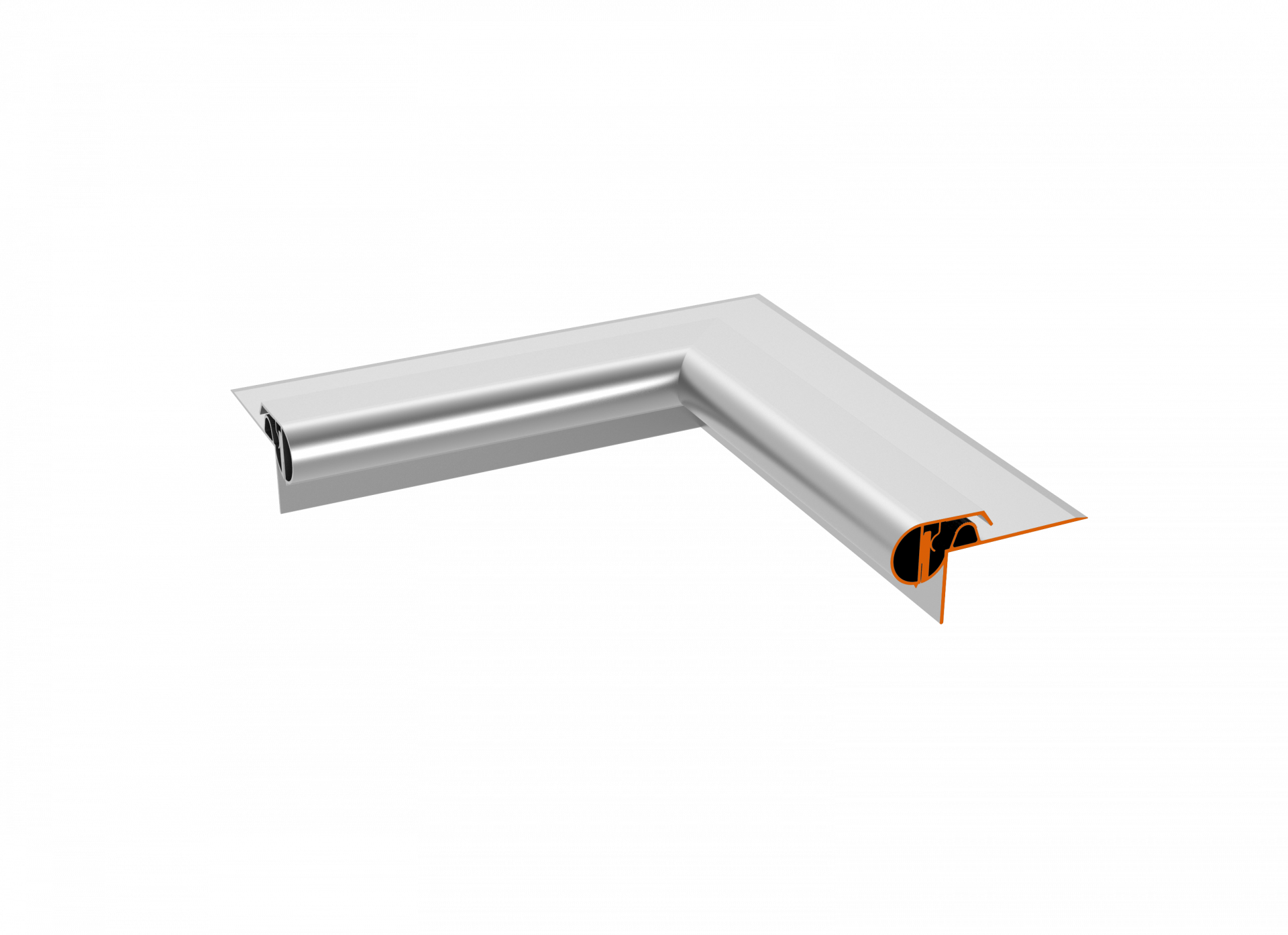

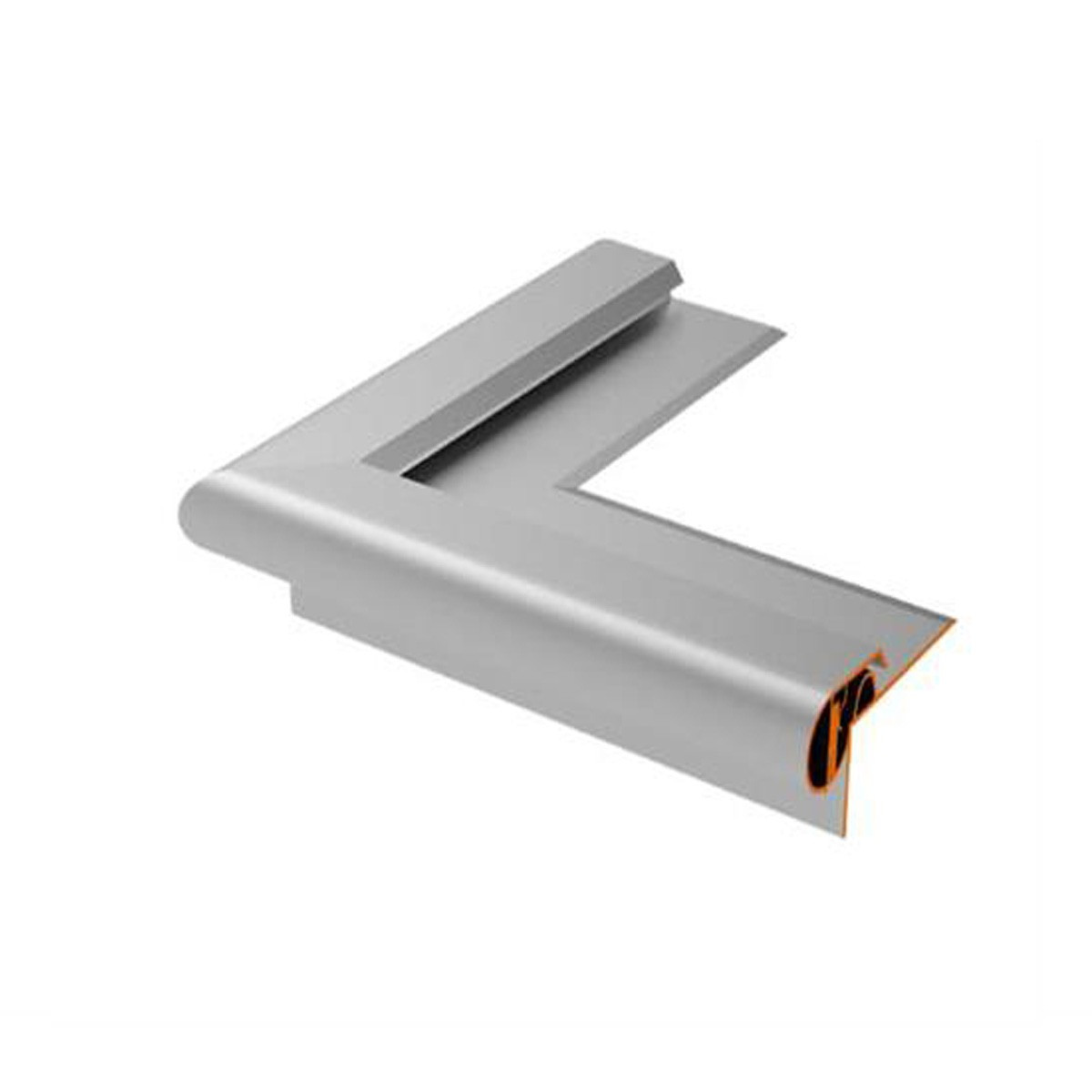

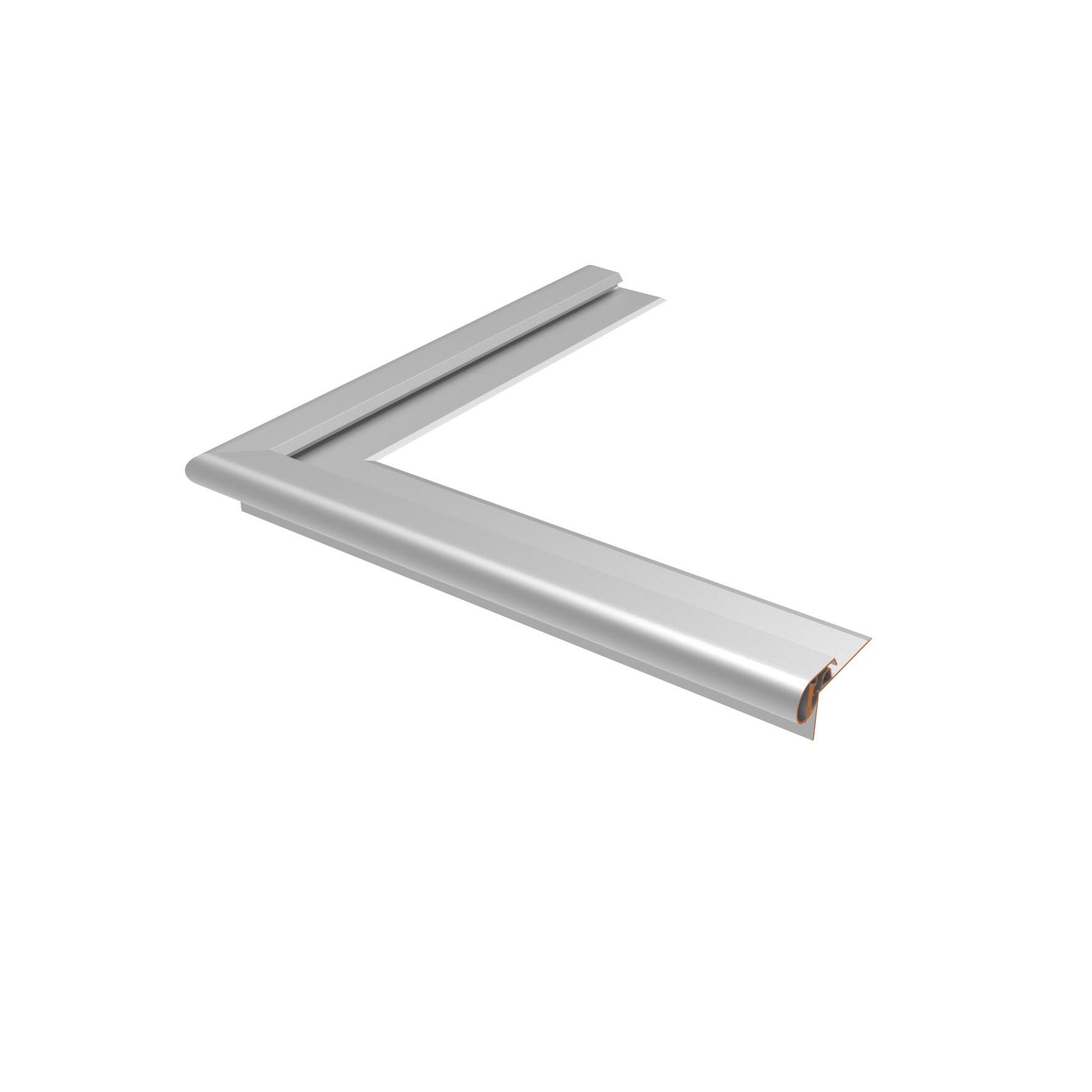

• Corner fittings, both exterior and interior angles, at 90°. Dimensions 500 by 500 mm and made of aluminium semi-circular decorative plates.
• ‘Easy corner’ accessory (80/80 mm effective) slides into the base profile at the angles for a seamless connection.
• Joint clips 50 mm long to provide a watertight finish to the joints.
