Roof verges & roof verge systems

Time saving and high efficiency

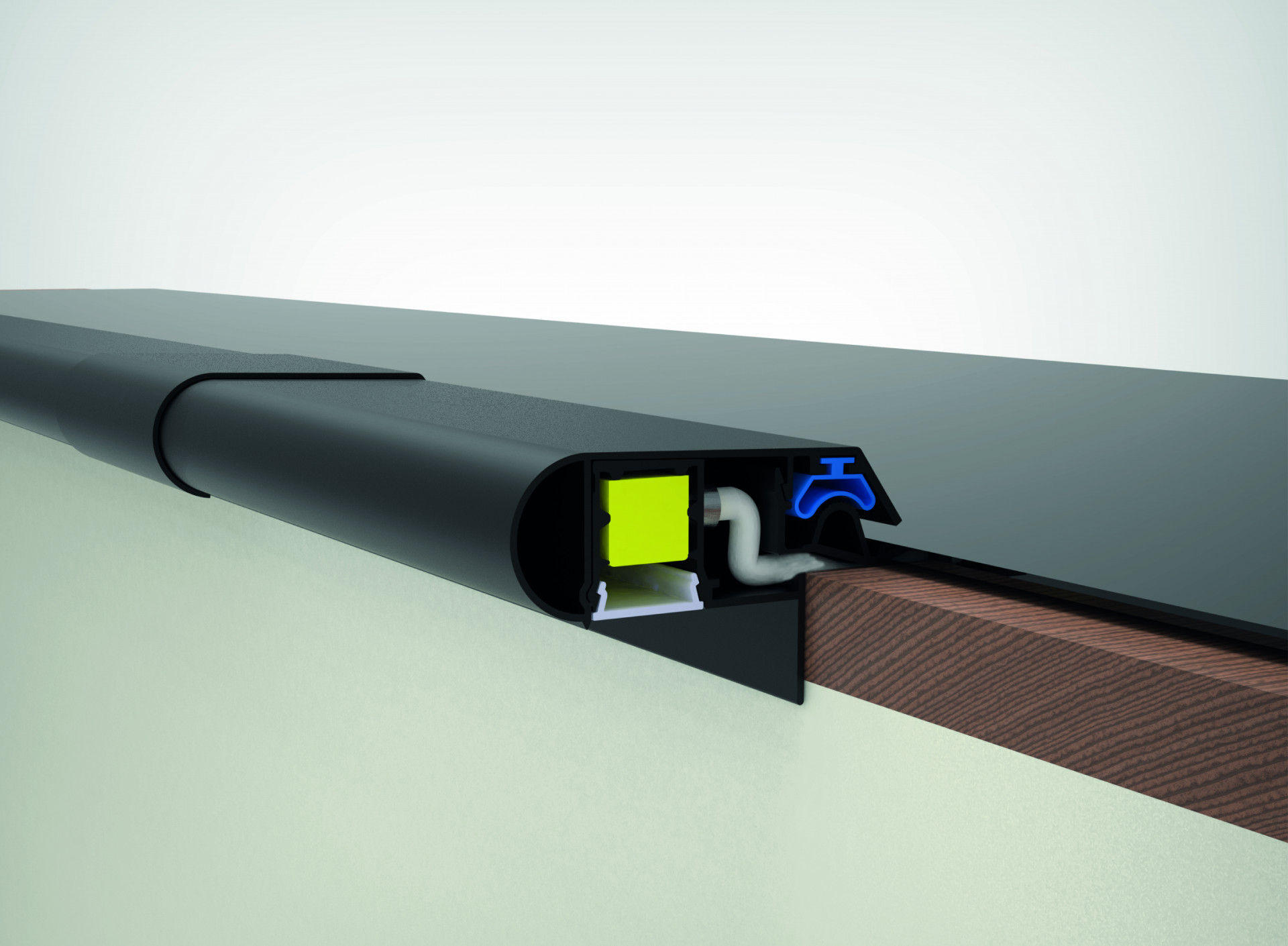

The base profile is equipped with pre-punched, 6x16 mm oval holes and has a 30 mm gable end to cover the wooden boarding. The direct connection of the membrane to the roof edge also results in significant savings on membrane accessories.

Easy to process an finish

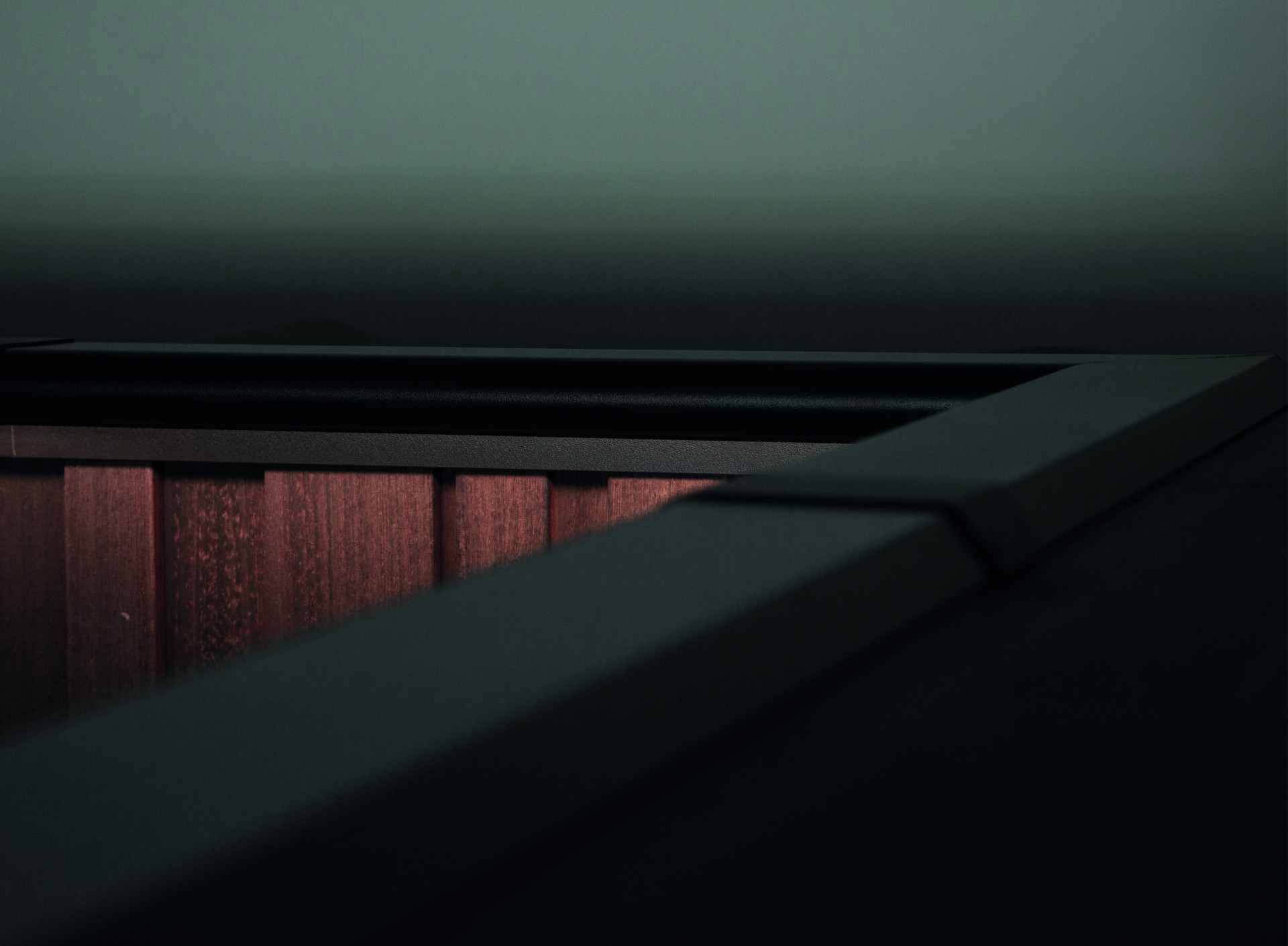

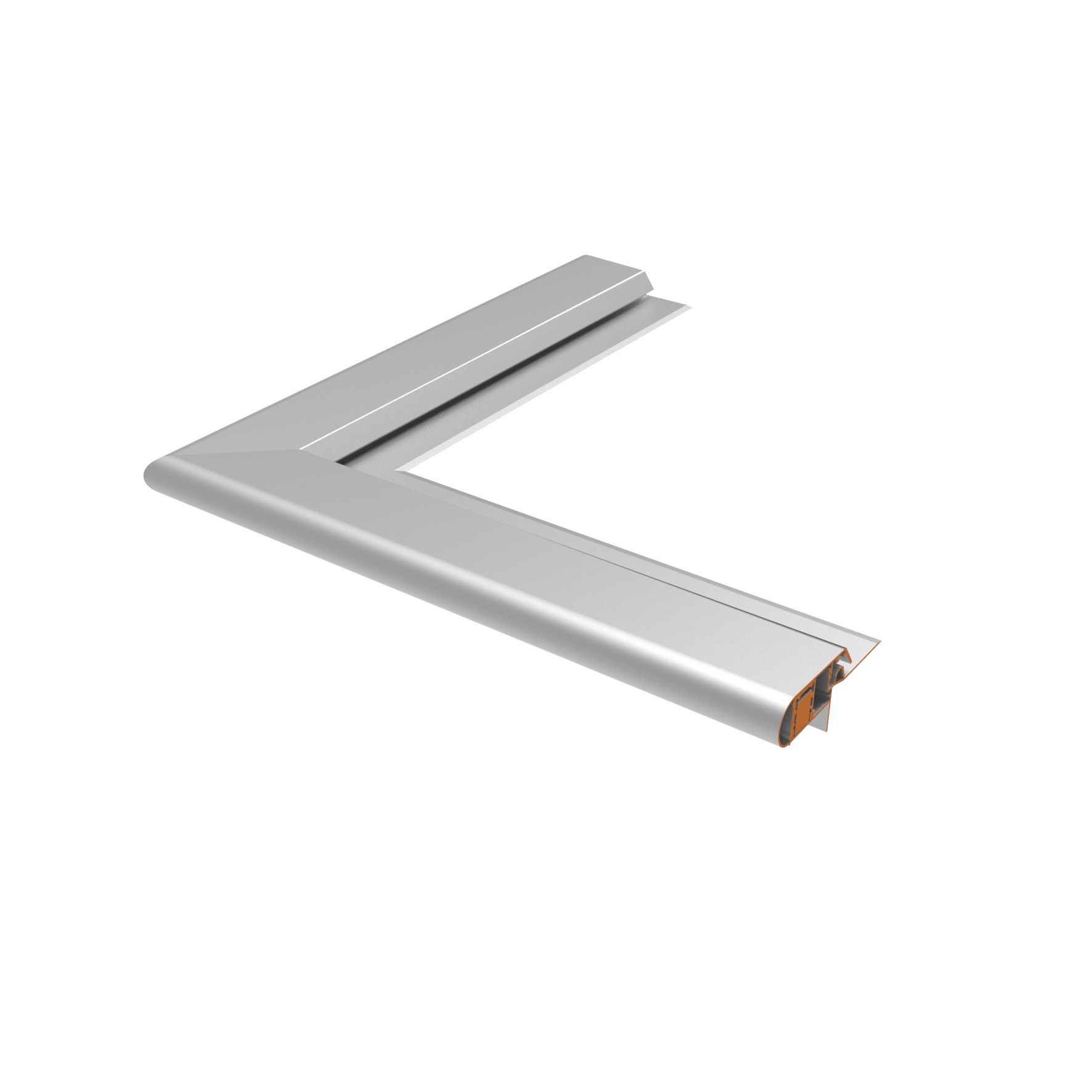

Corners

Handy accessories are available for working out interior and exterior angles. Fixed corner pieces ensure the perfect connection. This means no sawing in corners, as a mitre saw is not required. After the roof edge has been finished watertight with the base profile, the decorative trim is snapped vertically downwards onto the base profile. The base profile and the decorative trim in stove enamelled aluminium ensure optimal clamping on roofing.

Supply kit

Supply kits are available to easily shorten the profiles on site.

No risk of leakage, breakage or damage to the base or wall

The base profile and decorative trim connect directly. This reduces the risk of leakage, breakage or damage to the base or wall. The joint clips are 50 mm long and ensure a watertight finish for joints.

Suitable for EPDM roofing from 1.0 mm - 2.5 mm

The patented Iconik Light roof edge system is suitable for all EPDM membranes with a thickness of 1.0 mm to a maximum of 2.5 mm and for overlapping a maximum of 2 layer thicknesses.



•
•
•
•
•
•
•
•
•
•
•

Project inspirations achieved with this product

•

  Dendermonde

•

  Kortrijk
